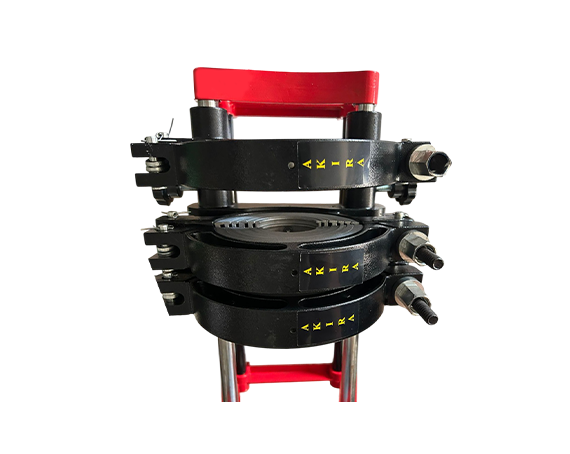

HDPE Pipe Heavy Duty Manual Welding Machine

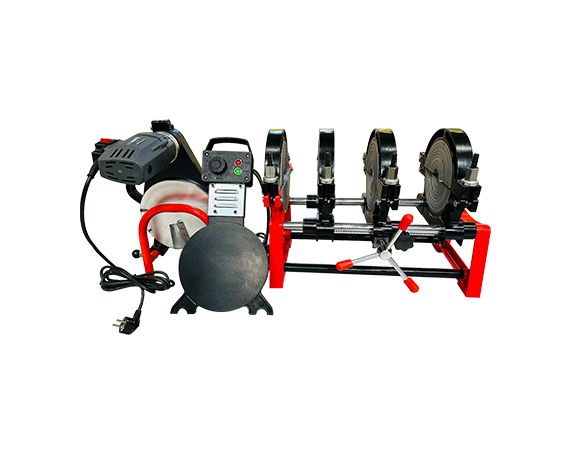

HDPE Light Weight Manual Welding Machine

Description:

AKIRA® manufactures high-quality HDPE Pipe Manual Butt Welding Machines designed for accurate and durable welding of PE, PP & PVDF pipes and fittings. Built for on-site reliability, these machines deliver consistent performance for water supply, gas pipelines, and industrial applications.

Machine Specification :

Model AKIRA160M AKIRA200M AKIRA250M
Clamps 4 Clamps 4 Clamps 4 Clamps
Welding Range (mm) 50,63,75,90,110,125,
140,160 		63,75,90,110,125,140,
160,180,200 		63,75,90,110,125,140,
160,180,200,225,250
Heating Plate Max. Temp 2700C
Temp. Deviation in Surface +-50C
Working Voltage 220 V 50HZ
Heating Plate Power 1.0KW 1.60KW 2.0KW
Planning Tool Power 0.9KW 0.9KW 1.0KW
Total Power 1.9KW 2.5KW 3.0KW
Pressure Adjustable Range 0.6 to 3 MPa
Weight 45 kg / 35 kg 55 kg / 45 kg 90 kg / 60 kg

Key Features

  • Multi-Material Welding Compatibility – Suitable for welding PE, PP & PVDF pipes and fittings with strong, leak-proof joints.
  • High-Strength Aluminium Clamps – Lightweight yet durable clamps ensure firm pipe holding and easy handling on site.
  • Digital Heating Plate Control – Provides accurate and uniform heating up to 270°C for consistent weld quality.
  • Stable & Rigid Frame Structure – Basic frame and support offer excellent alignment and vibration-free welding.
  • Wide Diameter Coverage – Available in multiple models supporting 50 mm to 250 mm pipe sizes.
  • Pressure Adjustable System – Adjustable pressure range from 0.6 to 3 MPa for precise welding control.
  • Heavy Duty & Light Duty Options – Choose as per site workload and application requirements.
  • Economic & Quality Range Models – Available in Gear Type and Non-Gear Type variants to match budget and performance needs.

Compatible Pipe & Fitting Types

The AKIRA® HDPE Manual Butt Welding Machine is compatible with a wide range of thermoplastic piping systems, ensuring strong, uniform, and leak-proof butt joints for water supply, gas distribution, and industrial applications.

  • PE pipes (including PE grades used for water & gas applications)
  • PP pipes
  • PVDF pipes
  • Butt weld fittings such as elbows, tees, reducers, and end caps

Standard & Optional Accessories

  • Manual Butt Welding Machine Unit
  • Planning Tool - Ensures smooth, accurate pipe alignment
  • Digital Heating Plate - Uniform heating up to 270°C
  • Basic Frame with Support - Stable structure for consistent welding
  • Aluminium Clamping System - Secure pipe holding with 4 clamps

Optional Accessories

  • Pressure Gauge (as per model variant)
  • Gear Type Drive System
  • Heavy Duty or Light Duty Configuration Options

Optional accessories help improve operational convenience, control, and suitability for different site working conditions.

Applications

  • HDPE Water Supply Pipelines
  • Gas Distribution Pipelines
  • Industrial Plastic Piping Systems
  • Infrastructure & Utility Projects

Why Choose AKIRA® HDPE Pipe Manual Butt Welding Machine?

  • Reliable and consistent butt welding performance
  • Strong aluminium clamp structure for stable welding
  • Easy manual operation with low maintenance needs
  • Available in multiple models to suit different site requirements
