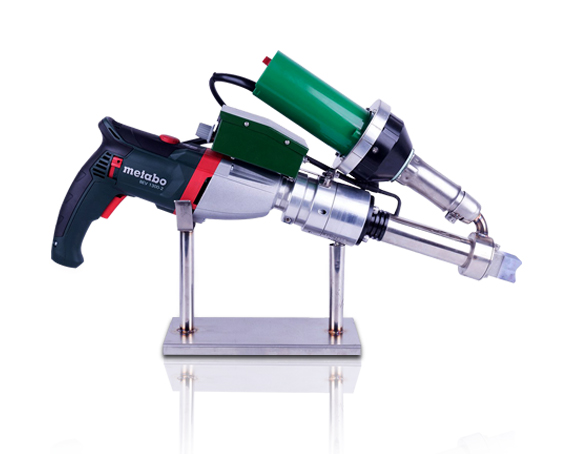

HDPE Extruder Welding Machine

This plastic extrusion welder is the first one in China that has functions of double independent heating systems digital display ccntroller,360 degree rotating welding head,motor cold start protection,which is applicable to welding PE , PP , PVC , PVDF and other hot melt material



Features :

  1. Double heating system welding rod feed heating system and hot air heating system make sure the best welding quality

  2. Digital display controller microcomputer chip contoller makes easy operation

  3. 360 degree rotating welding head: the 360 degree rotating hot air weld ng nozzle can be applied to deferent needs

  4. Motor cold start protection extruding motor well shut down automatically it it has not reached the preset melting temperature,which avoid lose caused by operatlng mistake

  5. Driving Motor : META3AO

Model :

  1. SWT-NS610A

  2. SWT-NS610B

  3. SWT-NS610C

  4. SWT-NS610D

Accessories :

  1. Fillet Welding Shoe

  2. Overlap Welding Shoe

  3. Heating Element

  4. PP Rod

  5. PE Rod

Model SWT-NS610A SWT-NS610B SWT-NS610C SWT-NS610D
Voltage 220V / 110V
Frequency 50 / 60Hz
Extruding Motor Power 1600W 3400W 1600W 3400W
Hot Air Power 800W
Welding Rod Heating Power 20-600oC
Air Temperature 200-3800C
Extruding Volume 2.5Kg/h
Welding Rod Diameter 3.0-4.0mm
Driving Motor METABO
N.W 7Kgs
3.W 13Kgs
